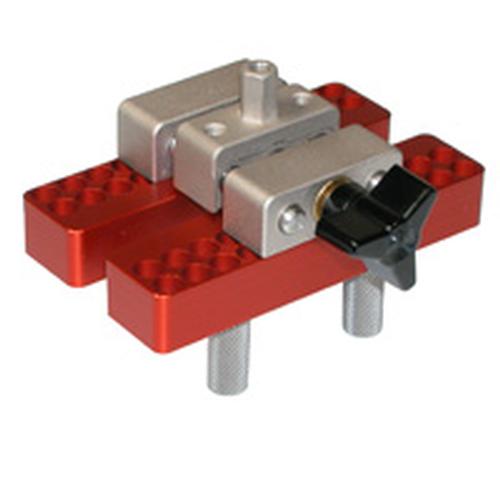

| This unique grip is designed to effectively secure samples for torque and pull tests. Typical applications include bottle cap torque testing, lid pull-off testing, and other tests. A matrix of threaded holes allows the serrated steel posts to be placed in positions specific to the test sample, with a broad diameter range of 0.2 - 3.5 in (5.1 - 89.0 mm). more ... |
| Test Equipment > Grips and Attachments > Torque - Force | ||||||
|
||||||
OverviewThis unique grip is designed to effectively secure samples for torque and pull tests. Typical applications include bottle cap torque testing, lid pull-off testing, and other tests. A matrix of threaded holes allows the serrated steel posts to be placed in positions specific to the test sample, with a broad diameter range of 0.2 - 3.5 in (5.1 - 89.0 mm).
|
||||||
This unique and universal grip is designed for gripping round and irregularly shaped items. Typical applications including pull-off tests of fasteners and components in the toy, clothing, and other industries
Adjustable jaws accommodate a range of sample shapes and sizes. Rotate the housing to open and close the jaws.
Typical toy testing application
Cap. lb [N]
Weight lb [kg]
A
B
C
ØD
E
ØF
100 [500 N]
0.30 [0.14]
3.50 [88.9]
2.30 [58.4] MAX
1.63 [41.4]
1.55 [39.4]
0.075 [1.91]
0.40 - 1.25 [10.2- 31.7]
|
||||||||||||||||||||||||||||||||||||||||||
