| Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. more ... |
| Test Equipment > Force Gauges > Digital Force Gauges | ||||||||||||||||||||||
|
||||||||||||||||||||||

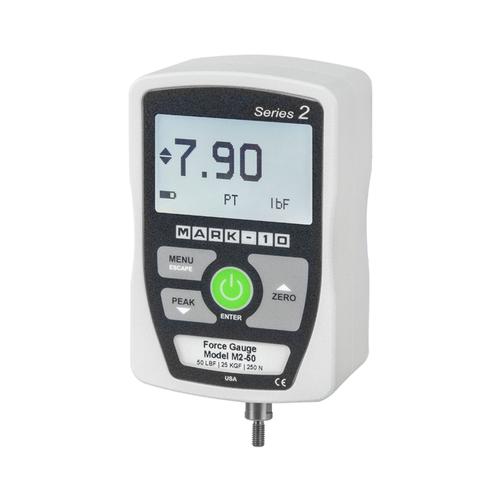

OverviewSeries 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.
Capacity x Readability
Manufature:
Mark 10100 lb x 0.1 lb SKU: M2-100 UPC: B00B79TOIC Quick Facts
Weight: 2.00 lb |
||||||||||||||||||||||
Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges +0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. USB output is provided for data collection purposes. The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.Features
In The Box
| Model | M2-2 | M2-5 | M2-10 | M2-20 | M2-50 | M2-100 | ||
|---|---|---|---|---|---|---|---|---|
| lbF | 2 x 0.002 | 5 x 0.005 | 10 x 0.01 | 20 x 0.02 | 50 x 0.05 | 100 x 0.1 | ||
| kgF | 1 x 0.001 | 2.5 x 0.002 | 5 x 0.05 | 10 x 0.01 | 25 x 0.02 | 50 x 0.05 | ||
| N | 10 x 0.01 | 25 x 0.02 | 50 x 0.05 | 100 x 0.1 | 250 x 0.2 | 500 x 0.5 | ||
| Thread | #10-32 UNF | 5/16-18 UNC | ||||||
| Accuracy | +0.5% of full scale | |||||||
| Sampling | 500 Hz | |||||||
| Power | AC adapter: 100-240VAC, 50-60 Hz, 0.3 A | |||||||
| Battery | Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage. | |||||||
| Battery life | Backlight on: Up to 7 hours of continuous use Backlight off: Up to 24 hours of continuous use |
|||||||
| USB output | USB Configurable to 115,200 baud. | |||||||
| Safe Overload | 200% of full scale (display shows “OVER” at 110% and above) | |||||||
| Weight | 0.7 lb [0.33 kg] | 0.9 lb [0.41 kg] | ||||||
| Included Items | 9V battery, quick-start guide, resource CD, certificate of conformance, Carrying case, USB cable | |||||||
| Enviromnental Requirements | 40 - 100oF, max. 96% humidity, non-condensating | |||||||
| Warranty | 3 years (see individual statement for further details) | |||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
