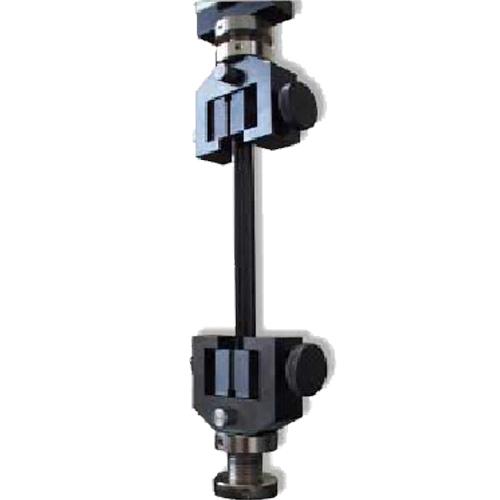

| This vice action grip has fully adjustable faces to help with alignment. The grip is supplied with 25mm x 25mm (1.0 x 1.0 in) standard plain jaw faces. Accepts samples up to 4 in (100 mm) with a maximum sample thickness of 0.5 in (12 mm). more ... |
Features
This vice action grip has fully adjustable faces to help with alignment. The grip is supplied with 25mm x 25mm (1.0 x 1.0 in) standard plain jaw faces. Optional jaw faces are available.
Accepts samples up to 4 (100 mm) with a maximum sample thickness of 0.5 (12 mm). Has a gripping length of 0.5 (12 mm). Capacity: 220 lb (1 kN); Minimum load cell: 10 lb (50 N); Weight: 2.2 lb (1 kg); Length: 6 (150 mm)
Packaging: includes upper and lower grips with standard straight cut faces.
Applications: Used for the tensile testing of paper, rubber, thin plastic film, woven and non-woven textiles, and foils
