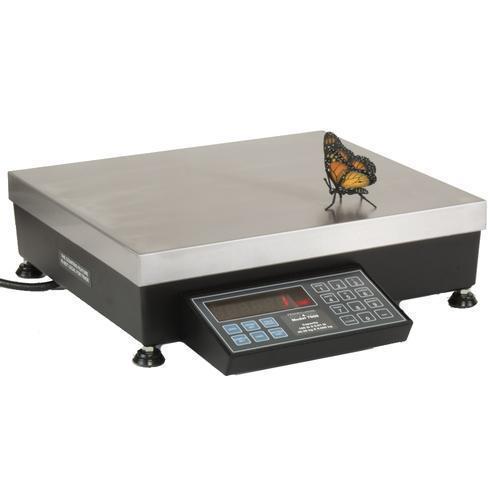

From simple one-button counting to sophisticated inventory control systems, the 7600 Series bench counting scales have a long list of features designed to adapt to your changing needs. Single or dual base counting. Percent of Error or Accuracy. Sample Update.™ Powerful RS-232. Rugged cast construction. Clean, efficient design means impressive accuracy and stable counting and weighing in a wide range of requirements Features

• High Resolution Counting and Weighing 20,000 Divisions
• Heavy-duty powder coated steel and SS construction
• Clean, convenient design with bright, Red LED display
• Full functions with Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
• Two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
• Single or optional dual base-counting and weighing
• Multiple count modes and Auto Sample Update and percent-of error/accuracy display
• Fast one-step or two-step counting
• One powerful and flexible standard serial ports, optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
• Four-year limited warranty

Applications
• Shipping or receiving verifications
• Checking quantities for production or inventory
• Rental Scales for short term use: single or dual platform
• Bench or portable weighing and counting
• Shipping manifest systems or SPC/SQC
• Quality control

Remote Base/Load Cell Compatibility (optional)
• Suitable for a wide range of bases and load cells
• Excitation: 10 V
• Impedance: 87 to 2,000 ohms
• Sensitivity: 1, 2, or 3 mv/V

Count Features
• Auto Sample Update™ for accuracy enhancement
• (4) Pre-set sample sizes plus keyboard entry
• Display of Percent of Error or Accuracy when sampling
• Display/Key entry of Piece Weight (or Piece Weight per thousand)
• Sample and Sample-to-bulk counting with 2nd optional platform

Weighing Functions
• Pushbutton or keyboard Tare entry
• Display of Gross/Net /Tare weights
• (2) standard metrological weight units

Data Communications
• Bi-directional RS-232 data output or USB
• Time and Date with nonvolatile memory
• OPTIONAL Ethernet communications
• OPTIONAL Analog output – jumper select 4–20 mA or 0–10 VDC
• OPTIONAL Relay outputs

• 14" (L) x 15.5" (W) x 5.25" (H); 15.25 lb
• 356 mm (L) x 394 mm (W) x 133 mm (H); 6.92 kg

Specifications
• Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
• .Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
• .Circuit Protection RFI, EMI, ESD Protection ADC shielded
• .Display: .56 LED Red, bright, stable and easy to read
• .Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, and Base 2
• Operating Temperature 14º F to 104ºF , -10ºC to 40ºC
• .Internal Resolution 1/8,000,000
• .Displayed Resolution. Standard 1/20,000. Up to 1/50,000
• .5 VDC excitation to power up to 12, 350-ohm load cells
• .Dimensions 12"h X 14"h Platter
• .Warranty 4 Year Limited Warranty
• .Legal for trade NTWP COC 91-149A7
• .Measurement Canada COC AM-4869 Rev. 3
• .Shipping Information: 23"h X 21"h X 7"h Carton 19 lbs. Battery Option 23 lbs.

Options - Please call us for more info
• Second base input
• Battery AC operation, built-in re-chargeable system, 30+ hours of operation
• Printers for label, barcode label or receipt printing
• External power input 12 or 24 VDC.
• •220/230 VAC operation
• 1 alarm buzzer mounted inside scale or indicator
• Ball-top transfer plate and roller conveyor
• Setpoint/relays DC or AC
• Alarm stack lights and buzzer
• Communications Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
• Analog output, 4-20ma or 0-10vdc
• Custom engineering for unique applications

Warranty The parts and components of these Pennsylvania Scale Company products are warranted for four years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.

Contact us –for many standard and custom features can be added. Accumulator, Peak Hold, UPS online/FedEx, Dual/Triple ranging
