OverviewThe PS.X7 series represents a new advanced level for precision balances. The X7 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips 210 g x 1 mg
|

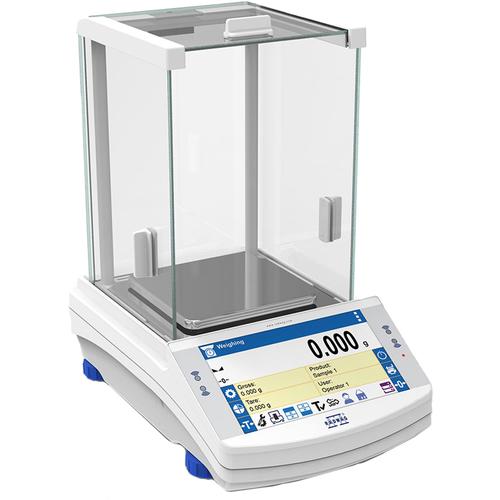

The PS.X7 series represents a new advanced level for precision balances. The X7 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication.
The X7 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X7 series offers direct access to the results of your work and other important information directly from the home screen. The X7 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel. In new PS.X7 series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 7 databases:
Personalization taken to the next level
Databases in X7 series balances
The X7 series features option of making reports on formulas (up to 500 reports).
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances. Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.
ALIBI MemoryThe X7 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well.
The ALIBI memory allows to record up to 500 000 weighment records.
Model | PS 200/2000.X7 WL-226-0011 |
PS 210.X7 WL-226-0012 |
PS 360.X7 WL-226-0014 |
PS 600.X7 WL-226-0015 |
PS 750.X7 WL-226-0016 |
PS 1000.X7 WL-226-0010 |
PS 3000.X7 WL-226-0013 |
---|---|---|---|---|---|---|---|
Capacity x Readability | 200 g x 1 mg 2000 x 0.01 g |
210 g x 1 mg | 360 g x 1 mg | 600 g x 1 mg | 750 g x 1 mg | 1000 g x 1 mg | 3000 g x 1 mg |
Minimum load | 20 mg | 20 mg | 20 mg | 20 mg | 20 mg | 20 mg | - |
Tare range | -2000 g | -210 g | -360 g | -600 g | -750 g | -1000 g | -3000 g |
Linearity | +2/20 mg | +2 mg | +2 mg | +3 mg | +3 mg | +3 mg | +6 mg |
Standard repeatability [5% Max] | 0.5 / 5 mg | 0.5 mg | 0.5 mg | 0.5 mg | 0.5 mg | 0.5 mg | 0.6 mg |
Standard repeatability [Max] | 1 / 10 mg | 1 mg | 1 mg | 1.5 mg | 1.5 mg | 1.5 mg | 1.5 mg |
Standard minimum weight (USP) | 1 g | 1 g | 1 g | 1 g | 1 g | 1 g | 1.2 g |
Standard minimum weight (U=1%, k=2) | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.12 g |
Stabilization time | 2 / 1.5 s | 2 s | 2 s | 2 s | 2 s | 2 s | 3 g |
Adjustment / Calibration | internal (automatic) | ||||||
Leveling system | manual | ||||||
Display | 7 inch graphic color touchscreen | ||||||
Delivery components | Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. | ||||||
Weighing pan dimensions | 128×128 mm | ||||||
Packaging dimensions | 545×455×575 mm | ||||||
Net weight | 3.99 kg | 3.99 kg | 3.99 kg | 3.99 kg | 3.99 kg | 3.99 kg | 3.99 kg |
Gross weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
Protection class | IP 43 | ||||||
Database capacity | 7 | ||||||
Touch-free operation | 2 IR Sensors | ||||||
Communication interface | 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi | ||||||
Power supply | Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A Balance: 12 – 15V DC 0,8A max | ||||||
Protection class | 4 W | ||||||
Operating temperature | +10 - +40 oC | ||||||
Ambient conditions monitoring (option) | THBR 2.0 System, THBR BOX, THB P, THB W, THB S | ||||||
Relative humidity | 40% ÷ 80% |
