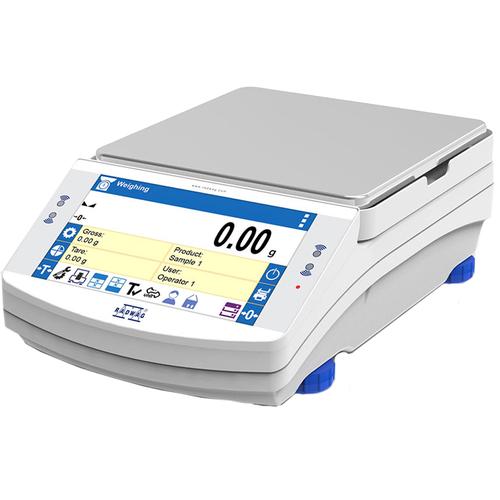

RADWAG PS-2100.X7.M Precision Balance

Features

The PS.X7 series represents a new advanced level for precision balances. The X7 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication.
Personalization taken to the next level

The X7 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X7 series offers direct access to the results of your work and other important information directly from the home screen.

The X7 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer.

Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.

Databases in X7 series balances

In new PS.X7 series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis. The data is registered in 7 databases:

Users (up to 10 users),
Products (up to 5 000 products),
Weighments (up to 50 000 weighments),
Packaging (up to 100 packaging types),
Formulas (up to 100 formulas),
Clients (up to 1000 clients),
ALIBI memory (up to 512 000 weighments).

The X7 series features option of making reports on formulas (up to 500 reports).

Weighing Data Management

USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances. Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.

ALIBI Memory

The X7 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well.
The ALIBI memory allows to record up to 500 000 weighment records.

Under-pan weighing Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System Cooperation with THBR 2.0 System for ambient conditions monitoring.

Specifications

Model	PS 2100.X7.M WL-226-0003	PS 3500.X7.M WL-226-0004	PS 4500.X7.M WL-226-0005	PS 6100.X7.M WL-226-0007	PS 8100.X7.M WL-226-0008	PS 10100.X7.M WL-226-0001
Price
Capacity x Readability	2100 g x 0.01 g	3500 g x 0.01 g	4500 g x 0.01 g	6100 g x 0.01 g	8100 g x 0.01 g	10100 g x 0.01 g
Legal Metrology (M) Capacity x Readability	2100 g x 0.1 g	3500 g x 0.1 g	4500 g x 0.1 g	6100 g x 0.1 g	8100 g x 0.1 g	-
Legal Metrology (M) Capacity x Readability	OIML Class II	OIML Class II	OIML Class II	OIML Class II	OIML Class II	-
Tare range	-2100 g	-3500 g	-4500 g	-6100 g	-8100 g	-10100 g
Linearity	+20 mg	+20 mg	+20 mg	+20 mg	+20 mg	+20 mg
Minimum load	500 mg	500 mg	500 mg	500 mg	500 mg	500 mg
Standard repeatability [5% Max]	5 mg	5 mg	5 mg	5 mg	5 mg	5 mg
Standard repeatability [Max]	8 mg	8 mg	8 mg	8 mg	10 mg	12 mg
Standard minimum weight (USP)	10 g	10 g	10 g	10 g	10 g	10 g
Standard minimum weight (U=1%, k=2)	1 g	1 g	1 g	1 g	1 g	1 g
Stabilization time	1.5 s	1.5 s	1.5 s	1.5 s	1.5 s	1.5 s
Adjustment / Calibration	internal (automatic)
Leveling system	manual
Display	7 inch graphic color touchscreen
Delivery components	Balance, weighing pan, weighing pan shield, power supply
Weighing pan dimensions	195×195 mm
Packaging dimensions	476×381×346 mm

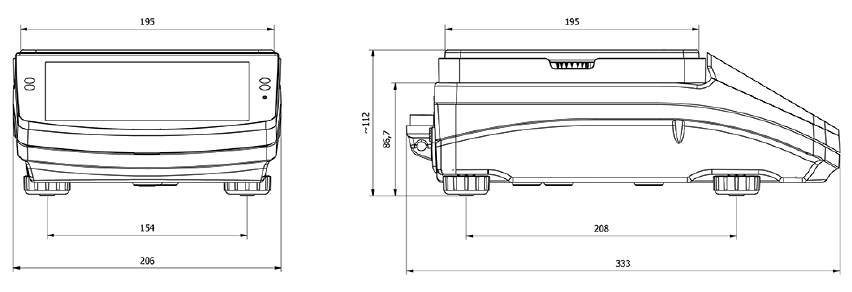

Device dimensions	333x206x112 mm
Net weight	4.3 kg	4.5 kg	4.5 kg	5.7 kg	5.7 kg	5.7 kg
Gross weight	5.5 kg	5.5 kg	6 kg	6.5 kg	6.5 kg	6.5 kg
Protection class	IP 43
Database capacity	7
Touch-free operation	2 IR Sensors
Communication interface	2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi
Power supply	Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A Balance: 12 – 15V DC 0,8A max
Protection class	4 W
Operating temperature	+10 - +40 ^oC
Ambient conditions monitoring (option)	THBR 2.0 System, THBR BOX, THB P, THB W, THB S
Relative humidity	40% ÷ 80%
