The seca XLine, with its sleek profile, substantial capacity, and expansive platform, reimagines the weighing experience for bariatric patients in wheelchairs. Healthcare personnel benefit from simplified tasks, enabling quick, secure, and uninterrupted patient care. Safety takes precedence, thanks to guardrails, a skid-proof surface, and an optional ramp for increased accessibility. The Tare-by-Scanning function further streamlines the weighing process by effortlessly taring out the pre-stored weight of the wheelchair through barcode scanning. Choose from two interface options – for EMR integration or non-integrated weighing – ensuring a seamless fit with your specific workflow requirements.

• Handrail equipped with an antimicrobial coating to enhance safety or serve as a standing aid
• XXL dimensions and capacity to accommodate bariatric wheelchairs
• Built to withstand the highest loads with a capacity of 1,100 lbs
• Extra low profile ensures a smooth and safe transition for wheelchair access onto the platform
• Third ramp available: upgrade your seca xline and further improve accessibility
• Tailor your experience by choosing between the basic display or the ID-Display™ with EMR-interface
• Tare-by-Scanning: simplify the weighing process by taring out the weight of the wheelchair by scanning its barcode
• EMR-validated, enabling seamless data transmission directly to an Electronic Medical Record (EMR) system or to a printer

Functions and Properties
TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inh switch-over, Adjustable damping, BMI, Standby mode, Acoustic signals can be activated, Backlighting

Includes:

• Two ramps seca seca 404
• Handrail seca 442
• Guard rail seca 446

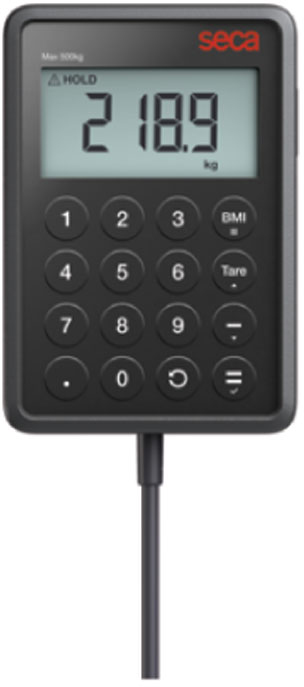

• Basic display seca 495 or ID-Display™ seca 496
• Platform scale (110 x 110 cm) seca 604

Seca XLine Scales
Model	ONSWXINBNN	ONSWXINTNN	ONSWXIRBNN	ONSWXIRTNN	ONSBXINTNN
Capacity x Readability	1100 x 0.2 lb	1100 x 0.2 lb	1100 x 0.2 lb	1100 x 0.2 lb	2200 x 0.2 lb
	500 kg x 100 g	500 kg x 100 g	500 kg x 100 g	500 kg x 100 g	1000 kg x 100 g
Type	XLine Base Wheelchair Scales		XLine Hold Handrail Scales		XLine Stretch Bed Scales
Units	kg/lbs
TARE-Range	500 kg/1,100 lb				1000 kg/2205 lb
Possible weighings	15000
Power supply	Batteries/Power adapter	Power adapter	Batteries/Power adapter	Power adapter
Cable length	118 in/3 m
Interfaces	none	Ethernet, USB for barcode scanner, Wi-Fi	none	Ethernet, USB for barcode scanner, Wi-Fi
Digit size	0.7 inch/18 mm	0.4 inch/9 mm	0.7 inch/18 mm	0.4 inch/9 mm
Net weight	122.1 lb/55.4 kg		136.7 lb/62.0 kg		215.4 lb/97.7 kg
Product width	60 in/1523 mm				103.7 in/2634 mm
Product height	4.6 in/117mm		44.4 in/1127 mm		4.7 in/119 mm
Product depth	48.0 in/1220 mm		50.8 in/1290 mm		48.3 in/1226 mm
Platform width	43.3 in/1,100 mm				86.6 in/2200 mm
Platform height	2.2 in/55 mm
Platform depth	43.3 in/1,100 mm
Ramp	2 ramps included
Functions	TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, Standby mode, Acoustic signals can be activated, Backlighting	Display of user and patient name or ID, Display date of birth patient, TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, Auto-CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, BSA (Body surface area), Standby mode, Wi-Fi, Ethernet, Patient data input, Confirm button, Acoustic signals can be activated, Backlighting	TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, Standby mode, Acoustic signals can be activated, Backlighting	Display of user and patient name or ID, Display date of birth patient, TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, Auto-CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, BSA (Body surface area), Standby mode, Wi-Fi, Ethernet, Patient data input, Confirm button, Acoustic signals can be activated, Backlighting
