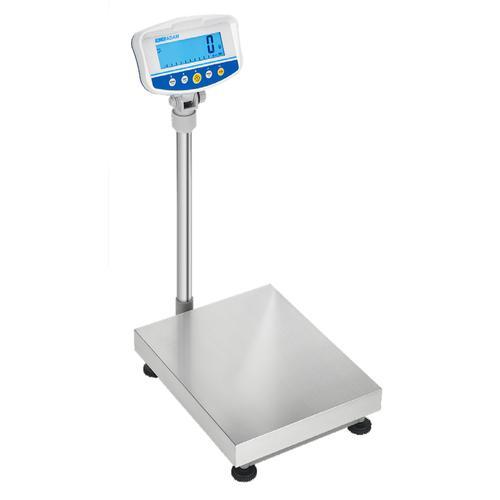

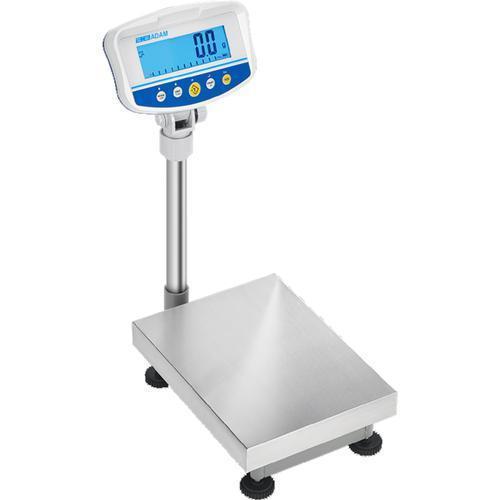

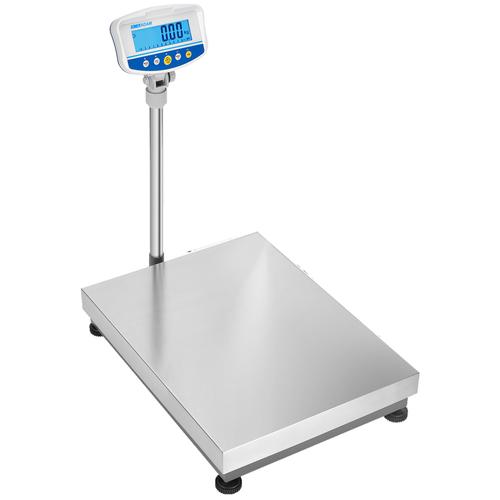

GBK-S and GFK-S bench and floor checkweighing scales offer bright, clear displays, heavy-duty durability, advanced checkweighing functions and a wide range of capacities and base sizes. Their 5-key operation makes general weighing tasks easy, with weight readings appearing clearly in 1.6” / 40mm-high digits. For checkweighing tasks, the backlight changes color to denote whether the sample is under (yellow), over (red) or within (green) preset limits. Weighing results can be exported via the RS-232 port to a PC or printer. Features

• Color-changing backlight in checkweighing mode to show if under, over or within acceptable limits
• Large, 40mm-high easy to read digits on a bright background
• Simple, 5-key operation allows for easy set up and use
• Solid ABS housing (Indicator) is durable for industrial use
• Large, grade 304 stainless steel pan allows swift cleaning
• RS-232 interface provides speedy connection to computers and printers
• Optional USB interface simplifies data communication
• Selectable language for printing
• 1:1,600,000 Internal counting resolution for precise results
• Auto power-off to save energy
• Hold function freezes the displayed weight,allowing time to elapse without losing the result
• External calibration allows for verification and adjustment with weights
• Capacity tracker built into display for easily monitoring possible overloads

Applications
• Weighing
• Parts counting
• Percentage weighing
• Checkweighing
• Check counting
• Accumulation

Accessories Key Accessories
Item Number.........Description
3052010526.......... In-use wet cover
3074010266........... RS-232 cable
3074010507........... RS-232 to USB adapter
1120015779............. ATP2 Thermal Printer
3126011263............. ATP2 paper
3126011281.............. ATP2 paper (x10)
600002028............ AdamDU Data Collection Program
700660290............ Calibration certificate
1140013826............. Roller deck (15.7" x 11.8")
1140013827............. Roller deck (19.7" x 15.7")
1140013828............. Roller deck (31.5" x 23.6")

Model	GBK-S-8	GBK-S-16	GBK-S-32	GBK-S-60	GBK-S-120	GFK-S-75H	GFK-S-75	GFK-S-150H	GFK-S-150	GFK-S-300	GFK-S-600
Capacity x Readability	16 x 0.0002 lb 8 kg x 0.1 g	35 x 0.001 lb 16 kg x 0.5 g	70 x 0.002 lb 32 kg x 1 g	130 x 0.005 lb 60 kg x 2 g	260 x 0.01 lb 120 kg x 5 g	165 x 0.002 lb 75 kg x 1 g	165 x 0.01 lb 75 kg x 5 g	330 x 0.005 lb 150 kg x 2 g	330 x 0.02 lb 150 x 0.01 kg	660 x 0.05 lb 300 x 0.02 kg	1320 x 0.1 lb 600 x 0.05 kg
Weighing Units	g, kg, lb, oz, lb:oz
Internal Counting Resolution	1:1,600,000
Interface	RS-232, Optional USB
Calibration	External
Display	Backlit LCD with 1.6" / 40mm-high digits
Power Supply	12VDC 800mA adapter, Optional internal rechargeable battery
Operating Temperature	-10° to 40°C / 14° to 104°F
Housing	ABS Plastic indicator with die-cast aluminum base
Overall Dimensions (DxWxH)	11.8" x 20.1" x 26.8" / 300 x 510 x 680mm					15.7" x 24.4" x 33.9" / 400 x 620 x 860mm					23.6" x 37" x 35.4" 600 x 940 x 900mm

Other Adam Equipment GBK-S and GFK-S Bench and Floor Scale

---

Image	Name			Price
	Adam Equipment GBK-S-8 Bench 11.8 x 15.7 in Check Weighing Scale 16 x 0.0002 lb SKU: GBK-S 8 Capacity x Readability : 16 lb x 0.0002 lb Pan Size: 11.8 x 15.7 in More Info			$772.00
	Adam Equipment GBK-S-16 Bench 11.8 x 15.7 in Check Weighing Scale 35 x 0.001 lb SKU: GBK-S 16 Capacity x Readability : 35 lb x 0.001 lb Pan Size: 11.8 x 15.7 in More Info			$648.00
	Adam Equipment GBK-S-32 Bench 11.8 x 15.7 in Check Weighing Scale 70 x 0.002 lb SKU: GBK-S 32 Capacity x Readability : 70 lb x 0.002 lb Pan Size: 11.8 x 15.7 in More Info			$712.00
	Adam Equipment GBK-S-60 Bench 11.8 x 15.7 in Check Weighing Scale 130 x 0.005 lb SKU: GBK-S 60 Capacity x Readability : 130 lb x 0.005 lb Pan Size: 11.8 x 15.7 in More Info			$712.00
	Adam Equipment GFK-S-75 Bench 19.7 x 15.7 in Check Weighing Scale 165 x 0.01 lb SKU: GFK-S 75 Capacity x Readability : 165 lb x 0.01 lb Pan Size: 19.7 x 15.7 in More Info			$804.00
	Adam Equipment GFK-S-75H Bench 19.7 x 15.7 in Check Weighing Scale 165 x 0.002 lb SKU: GFK-S 75H Capacity x Readability : 165 lb x 0.002 lb Pan Size: 19.7 x 15.7 in More Info			$1,140.00
	Adam Equipment GBK-S-120 Bench 11.8 x 15.7 in Check Weighing Scale 260 x 0.01 lb SKU: GBK-S 120 Capacity x Readability : 260 lb x 0.01 lb Pan Size: 11.8 x 15.7 in More Info			$756.00
	Adam Equipment GFK-S-150 Bench 19.7 x 15.7 in Check Weighing Scale 330 x 0.02 lb SKU: GFK-S 150 Capacity x Readability : 330 lb x 0.02 lb Pan Size: 19.7 x 15.7 in More Info			$804.00
	Adam Equipment GFK-S-150H Bench 19.7 x 15.7 in Check Weighing Scale 330 x 0.005 lb SKU: GFK-S 150H Capacity x Readability : 330 lb x 0.005 lb Pan Size: 19.7 x 15.7 in More Info			$1,140.00
	Adam Equipment GFK-S-300 Bench 19.7 x 15.7 in Check Weighing Scale 660 x 0.05 lb SKU: GFK-S 300 Capacity x Readability : 660 lb x 0.05 lb Pan Size: 19.7 x 15.7 in More Info			$876.00
	Adam Equipment GFK-S-600 Bench 23.6 x 31.5 in Check Weighing Scale 1320 x 0.1 lb SKU: GFK-S 600 Capacity x Readability : 1320 lb x 0.1 lb Pan Size: 23.6 x 31.5 More Info			$1,176.00
