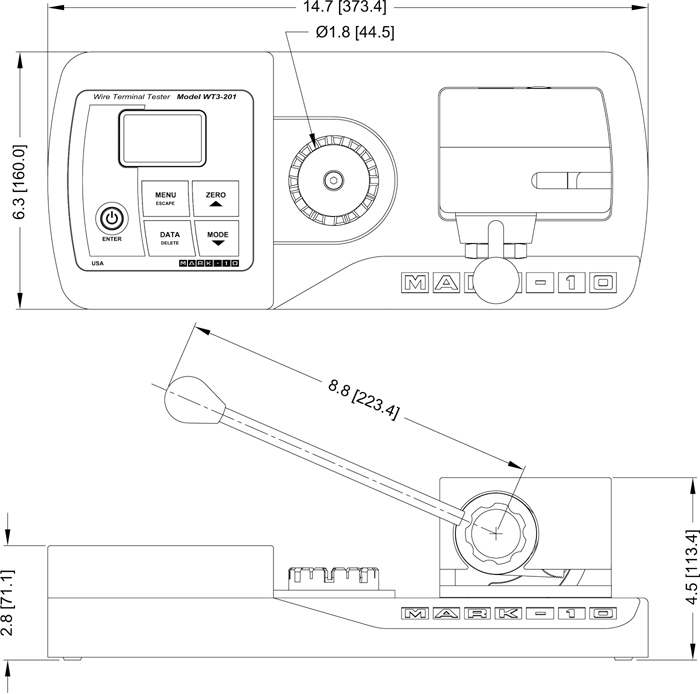

Mark-10 Model WT3-201 Wire Crimp Pull Tester

The WT3-201 wire crimp pull tester is designed to measure the pull-off force of crimped wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of crimp pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]). The tester accommodates most insulation types. Samples can be sent to Mark-10 for evaluation prior to purchase.

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

The WT3-201 accommodates most wire insulation materials. However, to ensure mechanical compatibility, we recommend sending wire samples to us for evaluation before purchase.

Features

• Measures real-time and peak force values
• Ergonomic lever operation produces 200 lbF [1,000 N]
• USB, RS-232, Mitutoyo (Digimatic), and analog outputs
• Automatic output / data storage / zeroing upon sample break helps automate testing processes
• 1,000-point data memory with statistics and outputs
• Password protection prevents unauthorized changes
• Programmable set point indicators and outputs for pass/ fail determination
• High-speed 7,000 Hz sampling rate accurately captures peak force values
• Configurable audio alarms and key tones
• Mounting holes for bench mounting

Model	WT3-201
Capacity x Resolution	200 x 0.1 lbF 3200 x 2 ozF 100 x 0.05 kgF 1000 x 0.5 N 1 x 0.0005 kN
Accuracy	+0.2% of full scale
Wire gauge range	AWG30 - AWG3*
Wire diameter range	0.01 - 0.25 in [0.3 - 6.3 mm]
Minimum sample length	6.5 in [165 mm], excluding termination
Maximum sample elongation	1.15 in [29.2 mm]
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Sampling rate	7,000 Hz
Outputs	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. Set points: Three open drain lines.
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	16.1 lb [7.3 kg]
Shipping weight	22 lb [10 kg]
Warranty	3 years (see individual statement for further details)
HS code	9024100000
ECCN	EAR99
Country of origin	USA

* Including insulation. To ensure the wire sample will fit into the WT3-201, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination. Additional Items to Consider

• CERT Certificate of calibration with data

• 15-1005 MESUR®gauge Plus software

• WT3002 Ring terminal fixture for WT3-201

• WT3003 Machinable blank terminal fixture

• WT3004 Carrying case for WT3-201

• AC1049 Calibration kit for WT3-201 (weights not included)

• AC1109 Cable, WT3-201 to RS-232

• AC1111 Spare USB cable

• AC1118 Spare rechargeable battery

• AC1030 Spare AC adapter, 110V

• AC1031 Spare AC adapter, 220V EUR

• AC1032 Spare AC adapter, 220V UK

• AC1035 Spare AC adapter, 220V AUS


In The Box

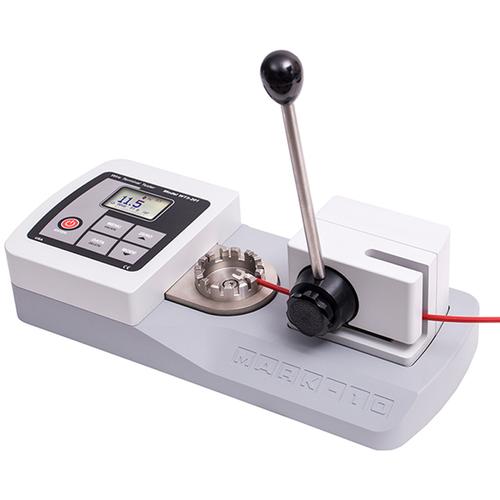

The WT3-201 Wire Crimp Pull Tester is shipped as shown at left, and includes the following accessories: (1) Removable lever (1) USB cable (1) Battery (1) AC adapter (1) Certificate of calibration without data
