Rice Lake CW-90B-680 201308 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb
Rice Lake - Calibration Weights - Medical Scales
Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds more ...
Industrial Scales > Bench Scales > Bench Scales with Column
Rice Lake CW-90B-680 201308 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb
Capacity x Readability
Non Legal Mode:5 lb x 0.001 lb
Legal For Trade: 5 lb x 0.001 lb
Pan Size
10 x 10 in


Price: $1,454.70


Available to Ship






Legal for Trade


Overview

Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds

Capacity x Readability
Non Legal Mode:5 lb x 0.001 lb
Legal For Trade: 5 lb x 0.001 lb
Pan Size
10 x 10 in
Manufature: Rice Lake
SKU: 201308
Weight: 25.00 lb

  Features

Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds.

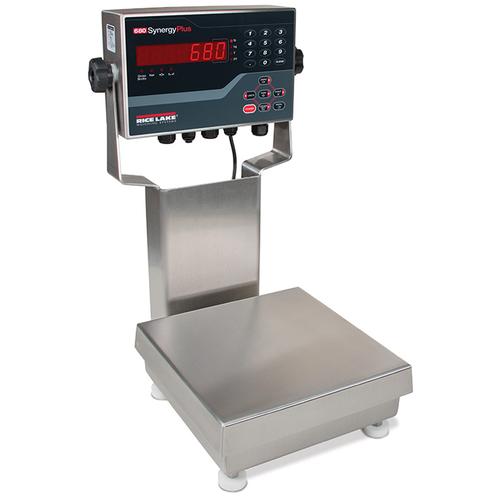

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.

This package pairs the 680 Synergy Series digital weight indicator with the CW-90B. Rice Lake’s 680 has an LED display, battery-backed time and date, a full numeric keypad, and multiple communication ports. Constructed with durable 304 stainless steel and able to withstand harsh washdowns, it maximizes process efficiency in virtually any environment or application.

  Specifications

With 380 Indicator
201308 201309 201310 201311 201312 201313
Capacity
Readability
5 x 0.001 lb 10 x 0.002 lb 25 x 0.005 lb 25 x 0.005 lb 50 x 0.01 lb 100 x 0.02 lb
2500 x 0.5 g 5000 x 1 g 10,000 x 2 g 10,000 x 2 g 25,000 x 5 g 50 x 0.01 kg

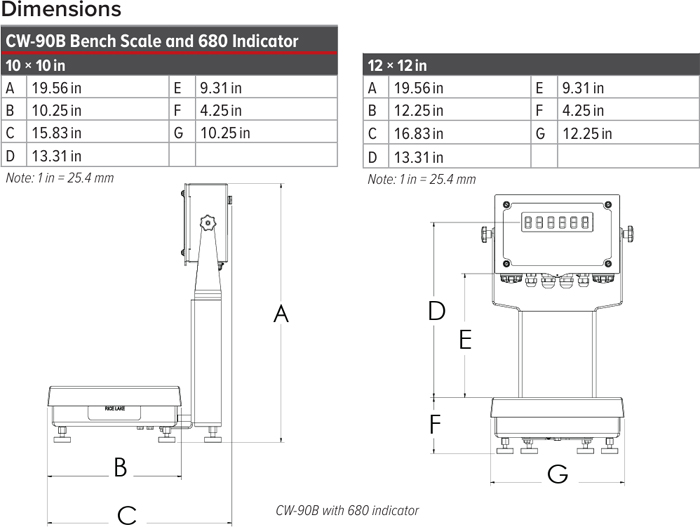

Pan Size 10 x 10 in 12 x 12 in
Rating IP67 aluminum, environmentally sealed
Scale Construction 304 stainless steel
Maximum Overload 180% to 200% depending on capacity
Overload Protection Five-point, independently adjusted
Scale Frame AISI304L, straight line finish, Ra= 45 +/- 10
Scale Cover AISI304L, straight line finish, Ra= 45 +/- 10
Cable Length 34 in
Compensated Temperature Range 14 °F to 104 °F (-10 °C to 40 °C)
Legal for Trade Base:NTEP 95-072, Class III 5,000 d
Indicator: NTEP 19-021
Measurement Canada Base: AM-5082
Indicator: AM-6121C
Interface Two full-duplex RS-232
RS-485/422 (five -wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
Display Seven 0.8 in tall, seven-segment digits
Annunciators Eight LED
Keys/Buttons Flat membrane panel, tactile feel (18 buttons plus on/off)
