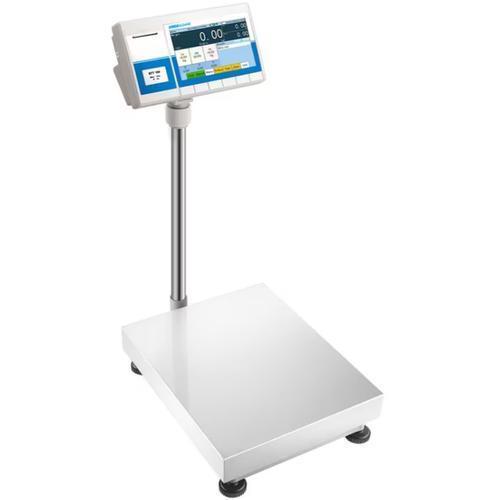

Adam Equipment BTT-16 Label Printing 11.8 x 15.7 inch Touch-Screen Scale 35 x 0.005 lb

Features

With an 8 inch / 200mm touchscreen display, BTT offers an intuitive, user-friendly interface, the convenience of a built-in printer and easy connectivity via RS-232, USB and optional ethernet, Wi-Fi and Bluetooth. Labels can be fully customized (including weighing data, QR codes, bar codes and logos) in varying lengths. BTT can store up to 10 label designs for fast recall. The indicator also includes a port to connect an optional bar code scanner.

Offering a smart, intuitive interface, the BTT Touch-Screen Label Printing Scales combine the functionality of a checkweighing scale with the convenience of a fully-customizable label printer and the ease of wireless data transmission. Connectivity interfaces include RS-232, USB and optional ethernet, Wi-Fi and Bluetooth. BTT can store up to 10 label designs in its memory, with label features such as weight, logos, QR codes and bar codes. Well-suited to manufacturing facilities, shipping and receiving areas, packing locations, and distribution warehouses, BTT offers a sturdy ABS plastic indicator and an easy-to-clean stainless steel pan.

Features

Checkweighing with audible alarm
Color-coded keys facilitate quick recognition of the most frequently used buttons
Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
Large, grade 304 stainless steel pan allows swift cleaning
Rugged construction stands up to industrial use
Sealed keypad protects against dirt and spills
Overload protection helps prevent damage to internal components
Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
Rechargeable battery included for operation almost anywhere
Programmable auto power-off to save energy
Memory accumulation totals results
Parts counting optimization automatically refines piece weight as parts are added
Selectable digital filtering helps minimize effects of vibration and disturbances
Zero-tracking feature ensures display returns to zero reading
1:600,000 internal counting resolution
USB and RS-232 interfaces provide speedy communication with computers and printers
Product look up (PLU) memory locations store a range of items for recall
Selectable language for printing
Parts counting with freely selectable sample sizes
Wall-mount bracket for placing indicator on vertical surface
A 3-year warranty means quality assured for years of use.

Applications

Net total weighing
Weighing
Percentage weighing
Checkweighing
Accumulation
Barcode / label printing
Parts counting
Averaging

Specifications

Model	BTT-8	BTT-16	BTT-32	BTT-60	BTT-75	BTT-150	BTT-300
Capacity x Readability	16 x 0.001 lb	35 x 0.005 lb	60 x 0.01 lb	120 x 0.02 lb	150 x 0.05 lb	330 x 0.1 lb	660 x 0.2 lb
Capacity x Readability	8 kg x 0.1g	16 kg x 0.5g	32 kg x 1g	60 kg x 2g	75 kg x 5g	150 kg x 10g	300 kg x 20g
Pan Size	15.7 x 11.8 in/ 400 x 300mm				19.7 x 15.7 in / 500 x 400mm
Weighing Units	g, kg, lb, lb:oz, oz, ct, dr, mm, tl.T, T
Interface	RS-232, USB, Ethernet RJ45, Wi-F
Calibration	External
Display	Touchscreen
PLU memories	1006
Power Supply	12VDC 3A adapter, Internal rechargeable battery
Operating Temperature	32° to 104°F / 0° to 40°C
Housing	ABS Plastic indicator with mild steel base and stainless steel pan
Accessories	700200107 ............Casters / wheels (set of 4) 1140013826 ............Roller deck (15.7” x 11.8” / 400 x 300mm) 1140013827 ...........Roller deck (19.7” x 15.7” / 500 x 400mm) 400005615 ............Labels — 800 per roll 3014011014 .............RS-232 cable 9M-9F 3074010507 ..........RS-232 to USB adapter 600002028 ...........AdamDU Data Collection Program 7 00660290 ...........Calibration certificate 7 00660288 ...........Calibration certificate (BKT 300)
