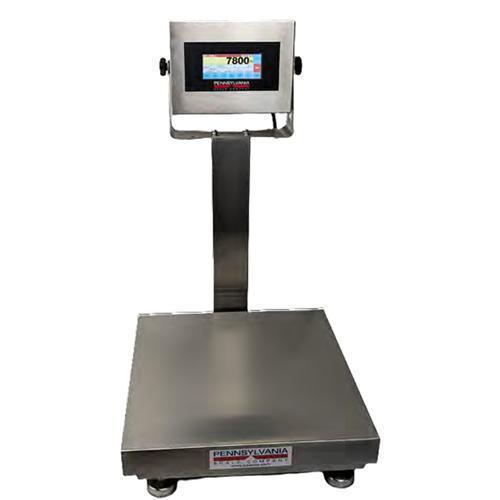

Pennsylvania Scale SS7800MAX-1212-100 12 x 12 in Touchscreen Washdown Legal for Trade Bench Scale 100 X 0.02 lb

Overview

Capacity x Readability
Non Legal Mode:100 lb x 0.02 lb
Legal For Trade: 100 lb x 0.02 lb
Pan Size
12 x 12 in

Manufature: Pennsylvania Scale
SKU: SS7800MAX-1212-100
Weight: 20.00 lb

Features

The Pennsylvania Scale SS7800MAX Washdown Bench Scale is a rugged, high-performance solution designed for demanding industrial environments where cleanliness and durability are non-negotiable. Built with full 304 stainless steel construction—including the load cell and hardware—it offers complete IP69K washdown protection to withstand harsh cleaning chemicals and rigorous sanitation protocols. The hygienic design features welded platform corners, a sealed indicator, and an open-base frame, eliminating debris-collecting gaps and allowing for quick, thorough cleaning. Ideal for food processing and other sanitary applications, this scale ensures both reliability and easy maintenance.

Packed with advanced features, the SS7800MAX includes a full QWERTY keyboard, 750-item product database, and powerful checkweighing and setpoint relay functions. It adapts to multiple units of measure and offers exceptional connectivity with dual serial ports and optional upgrades like Ethernet/IP, Wi-Fi, USB, and Bluetooth. With impressive internal resolution and user-friendly operation, it’s engineered to meet complex weighing demands while delivering precision and speed. Backed by a four-year limited warranty, the SS7800MAX is a smart investment for operations requiring peak performance, flexibility, and maximum sanitation compliance.

Standard Features

IP69K Wash down protection with a 304 stainless steel design including load cell and all hardware resists corrosion from harsh cleaning chemicals and repeated washdown
Hygienic and easy to clean design, completely sealed indicator and welded corners on platform cover along with an open design base structure makes this easy to clean without areas to collect water or debris
Interior mounted display overlay, unique gasket and support design provides washdown seal with only four (4) bolts on backplate.
Full alpha-numeric QWERTY keyboard for easy entry of scale data points
Check weighing and Setpoint relay operation
750 SKU/Product ID Database to store and recall by alphanumeric Part#, Description, 3 user-defined Fields, Tare Weight, Over/Under Check weigh Settings, Setpoint/Relay Target settings
Adaptive changes to show 4 units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Two powerful and flexible standard serial ports, optional EtherNet/IP, Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
Four Year Limited Warranty

Specifications:

Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Circuit Protection RFI, EMI, ESD Protection ADC shielded
Display: 0.56 LED Red, bright, stable and easy to read
Operating Temperature 14^O to 104^O, -10^O to 40^O
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/10,000. Up to 1/50,000
5 VDC excitation to power 350-ohm load cells
Two Year Limited Warranty

Options:

Ethernet IP
Dual base input
External power input 12 or 24 VDC, specify at time of order, requires external power supply of 12 or 24 VDC
220/230 VAC Operation
1 Alarm Buzzer Mounted inside scale or indicator
Setpoint/relays DC or AC
EtherNet/IP, Wired Ethernet and Wi-Fi TCP/IP
USB com port and keyboard emulation HID Bluetooth com port and keyboard emulation HID

Specifications

Pennsylvania Scale SS7800MAX Washdown Bench Scale Floor Scales with 7800MAX Indicator
Models	SS7800MAX-1212-25	SS7800MAX-1212-50	SS7800MAX-1212-100	SS7800MAX-1216-50	SS7800MAX-1216-100	SS7800MAX-1216-150	SS7800MAX-1616-100	SS7800MAX-1616-250	SS7800MAX-1616-500
Capacity	25 X 0.005 lb 11.35 X 005 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	150 X 0.05 lb 68.00 X 0.02 kg	100 X 0.02 lb 45.36 X 0.01 kg	250 X 0.05 lb 113.4 X 0.05 kg	500 X 0.1 lb 226.8 X 0.05 kg
Size	12 X 12 inch	12 X 12 inch	12 X 12 inch	12 X 16 inch	12 X 16 inch	12 X 16 inch	16 X 16 inch	16 X 16 inch	16 X 16 inch
Legal for trade	Base:NTEP COC 90-097A3 Indicator:NTEP: 97-009A31 Base:Measurement Canada COC S.WA-4456 Rev. 3 Rev. 4 Indicator:Canadian Weights & Measures: AM-5647 4869, Rev. 3
Communication	Bidirectional RS-232 standard options include: USB Virtual Comport, USB HID Keyboard Emulation, Wired Ethernet, WiFi, Analog Output, selectable 0-10VDC or 4-20m
Column	14"
Power	AC line voltages 115
Operating Temperature	14^O to 104^O, -10^O to 40^O
units	lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Rating	IP69K
Circuit Protection	RFI, EMI, ESD Protection ADC shielded
Touchscreen Display	800 X 320 dot resolution, and 4.6" full-color LCD display with resistive touch panel
Indications	Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
SKU Lookup	750 (optional upto 3000)
Internal Resolution	1/8,000,000
Displayed Resolution	Standard 1/10,000. Up to 1/50,000
load cells	5 VDC excitation to power up to 12, 350 ohm load cells
Warranty	Two Year Limited Warranty
	Made in USA

OPTIONS
SS7800MAX Options - Note "XXX" = capacity

Part Number	Description	Price
SS7800MAX-1212-XXX AB SS7800MAX-1216-XXX AB SS7800MAX-1616-XXX AB	1 Alarm Buzzer Mounted inside scale or indicator	Call
SS7800MAX-1212-XXX AO SS7800MAX-1216-XXX AO SS7800MAX-1616-XXX AO	Analog output option. Jumper select for 0 - 10 VDC or 4 - 20ma (Specify when ordering) output via two conductor cable.	Call
SS7800MAX-1212-XXX BTH SS7800MAX-1216-XXX BTH SS7800MAX-1616-XXX BTH	Blue tooth option. Internal blue tooth transmitter/receiver for com port communication.	Call
SS7800MAX-1212-XXX DC SS7800MAX-1216-XXX DC SS7800MAX-1616-XXX DC	Built in rechargeable battery option. 30+ hours of continuous operation with integrated battery charger and heavy duty power cord.	Call
SS7800MAX-1212-XXX DCR SS7800MAX-1216-XXX DCR SS7800MAX-1216-XXX DCR	Four VDC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values. Up to 32 VDC at 1 Amp	Call
SS7800MAX-1212-XXX EIP SS7800MAX-1216-XXX EIP SS7800MAX-1616-XXX EIP	EtherNet/IP Communication option. Wired, fully configurable and programable with bulkhead RJ45 connector	Call
SS7800MAX-1212-XXX EO SS7800MAX-1216-XXX EO SS7800MAX-1616-XXX EO	Wired ethernet option. Wired ethernet communication port, fully networked configurable with bulkhead RJ45 connector. Includes software utility for setup and configuration	Call
SS7800MAX-1212-XXX HID SS7800MAX-1216-XXX HID SS7800MAX-1616-XXX HID	Human interface device USB Option. Provides keyboard emulation USB port with USB "A" bulkhead connector IP68 Washdown rated Includes 2 meter washdown cable	Call
SS7800MAX-1212-XXX SSR SS7800MAX-1216-XXX SSR SS7800MAX-1616-XXX SSR	Four 120 VAC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values. Up to 250 VAC at 1 Amp	Call
SS7800MAX-1212-XXX USB SS7800MAX-1216-XXX USB SS7800MAX-1616-XXX USB	USB option. Provides USB comport communications with USB "A" bulkhead connector. IP68 Washdown Rated includes 2-meter washdown cable	Call
