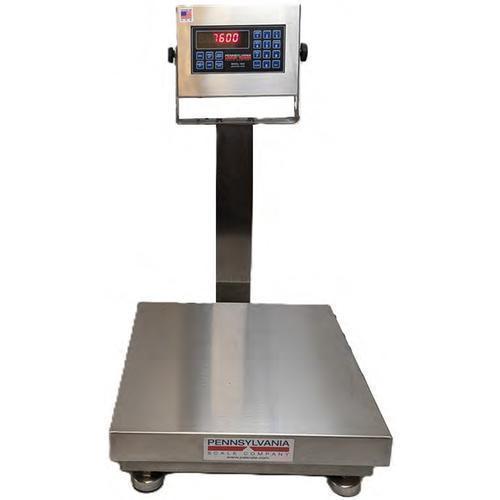

Pennsylvania Scale SS7600MAX-1212-100 12 x 12 in Washdown Legal for Trade Bench Scale 100 X 0.02 lb

Features

The Pennsylvania Scale SS7600MAX IP69K Washdown Bench Scale delivers top-tier performance in environments where cleanliness, durability, and precision are paramount. Engineered with full 304 stainless steel construction and an IP69K/NEMA 4X washdown rating, this scale withstands repeated high-pressure sanitation and exposure to corrosive cleaning agents. Its open-base design, welded platform corners, and fully sealed indicator eliminate moisture traps, making it exceptionally hygienic and easy to maintain in food, chemical, and pharmaceutical processing applications. Plus, with built-in 300% overload protection and column options (14" or 18"), its ready for heavy-duty use.

The SS7600MAX offers intuitive operation with comprehensive weighing functions—Zero, Tare, Gross/Net, Piece Count, Print, and more—alongside the ability to display weight in two simultaneous units from a broad selection including lb, kg, oz, and grams. It includes a standard bi-directional serial port and supports upgrades for Ethernet, Wi-Fi, USB, and Bluetooth for seamless integration into your workflow. With advanced circuit protection, high internal resolution, and a bright LED display, this scale provides the reliability and flexibility you need, backed by a solid two-year limited warranty. The SS7600MAX is the perfect blend of rugged design and user-friendly functionality.

Standard Features

Outstanding performance in washdown sanitary production environments
Washdown rating of IP69K/Nema 4X for high pressure washdown protection
304 stainless steel design including load cell and all hardware resists corrosion from harsh cleaning chemicals and repeated washdown
300% overload protection
Hygienic and easy to clean design, completely sealed indicator and welded corners on platform cover along with an open design base structure makes this easy to clean without areas to collect water or debris
Includes 14" or 18" Column
7600 With full functions with Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
Weight displayed in any two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. – oz
Serial com port standard, bi-directional and programmable, optional Ethernet, Wi-Fi, USB, Bluetooth and analog output

Specifications:

Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Circuit Protection RFI, EMI, ESD Protection ADC shielded
Display: 0.56 LED Red, bright, stable and easy to read
Operating Temperature 14 to 104, -10 to 40
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/10,000. Up to 1/50,000
5 VDC excitation to power 350-ohm load cells
Two Year Limited Warranty

Options:

Dual base input
External power input 12 or 24 VDC, specify at time of order, requires external power supply of 12 or 24 VDC
220/230 VAC Operation
1 Alarm Buzzer Mounted inside scale or indicator
Setpoint/Relays DC or AC
Wired Ethernet and Wi-Fi TCP/IP
USB com port and keyboard emulation HID
Bluetooth com port and keyboard emulation HID

Specifications

Pennsylvania Scale SS7600MAX Washdown Bench Scale Floor Scales with 7600MAX Indicator
Models	SS7600MAX-1212-25	SS7600MAX-1212-50	SS7600MAX-1212-100	SS7600MAX-1212-25	SS7600MAX-1212-50	SS7600MAX-1212-100	SS7600MAX-1616-100	SS7600MAX-1616-250	SS7600MAX-1616-500
Capacity	25 X 0.005 lb 11.35 X 005 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	150 X 0.05 lb 68.00 X 0.02 kg	100 X 0.02 lb 45.36 X 0.01 kg	250 X 0.05 lb 113.4 X 0.05 kg	500 X 0.1 lb 226.8 X 0.05 kg
Size	12 X 12 inch	12 X 12 inch	12 X 12 inch	12 X 16 inch	12 X 16 inch	12 X 16 inch	16 X 16 inch	16 X 16 inch	16 X 16 inch
Legal for trade	Base:NTEP COC 90-097A3 Indicator:NTEP: 97-009A31 Base:Measurement Canada COC S.WA-4456 Rev. 3 Rev. 4 Indicator:Canadian Weights & Measures: AM-5647 4869, Rev. 3
Communication	Bidirectional RS-232 standard options include: Wired Ethernet, Wi-Fi TCP/IP, USB com port ,Bluetooth com port , keyboard emulation HID and Setpoint/Relays DC or AC
Column	14"
Power	AC line voltages 115
Operating Temperature	14^o to 104^o, -10^o to 40^o
units	lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Rating	IP69K
Circuit Protection	RFI, EMI, ESD Protection ADC shielded
Display	0.56 LED Red, bright, stable and easy to read
Indications	Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
Internal Resolution	1/8,000,000
Displayed Resolution	Standard 1/10,000. Up to 1/50,000
load cells	5 VDC excitation to power up to 12, 350 ohm load cells
Warranty	Two Year Limited Warranty
	Made in USA

OPTIONS
SS7600MAX Options - Note "XXX" = capacity

Part Number	Description	Price
SS7600MAX-1212-XXX 12DC SS7600MAX-1216-XXX 12DC SS7600MAX-1616-XXX 12DC	External power input 12 or 24 VDC. Specify at time of order,	Call
SS7600MAX-1212-XXX 220VAC SS7600MAX-1216-XXX 220VAC SS7600MAX-1616-XXX 220VAC	220/230 VAC Operation	Call
SS7600MAX-1212-XXX AB SS7600MAX-1216-XXX AB SS7600MAX-1616-XXX AB	1 Alarm Buzzer Mounted inside scale or indicator	Call
SS7600MAX-1212-XXX AO SS7600MAX-1216-XXX AOC SS7600MAX-1616-XXX AO	Analog output option. Jumper select for 0 - 10 VDC or 4 - 20ma (Specify when ordering) output via two conductor cable.	Call
SS7600MAX-1212-XXX BTH SS7600MAX-1216-XXX BTH SS7600MAX-1616-XXX BTH	Blue tooth option. Internal blue tooth transmitter/receiver for com port communication.	Call
SS7600MAX-1212-XXX DCR SS7600MAX-1216-XXX DCR SS7600MAX-1616-XXX DCR	Four VDC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values. Up to 32 VDC at 1 Amp	Call
SS7600MAX-1212-XXX EO SS7600MAX-1216-XXX EO SS7600MAX-1616-XXX EO	Wired ethernet option. Wired ethernet communication port, fully networked configurable with bulkhead RJ45 connector. Includes software utility for setup and configuration	Call
SS7600MAX-1212-XXX HID SS7600MAX-1216-XXX HID SS7600MAX-1616-XXX HID	Human interface device USB Option. Provides keyboard emulation USB port with USB "A" bulkhead connector IP68 Washdown rated Includes 2 meter washdown cable	Call
SS7600MAX-1212-XXX SSR SS7600MAX-1216-XXX SSR SS7600MAX-1616-XXX SSR	Four 120 VAC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values. Up to 250 VAC at 1 Amp	Call
SS7600MAX-1212-XXXH USB SS7600MAX-1216-XXX USB SS7600MAX-1616-XXX USB	USB option. Provides USB comport communications with USB "A" bulkhead connector. IP68 Washdown Rated includes 2 meter washdown cable	Call
SS7600MAX-1212-XXX WIFI SS7600MAX-1216-XXX WIFI SS7600MAX-1616-XXX WIFI	Wi-Fi option. Wireless ethernet communication with bulkhead mounted antenna, fully networked configurable. Includes software utility for setup and configuration	Call

Other Models

Other Pennsylvania Scale SS7600MAX Washdown Legal for Trade Scale

Image	Name			Price
	Pennsylvania Scale SS7600MAX-1212-25 12 x 12 in Washdown Legal for Trade Bench Scale 25 X 0.005 lb SKU: SS7600MAX-1212-25 Capacity x Readability : 25 lb x 0.005 lb Legal For Trade: 25 lb x 0.005 lb Pan Size: 12 x 12 in More Info			$1,651.65
	Pennsylvania Scale SS7600MAX-1212-25 12 x 12 in Washdown Legal for Trade Bench Scale 50 X 0.01 lb SKU: SS7600MAX-1212-50 Capacity x Readability : 50 lb x 0.01 lb Legal For Trade: 50 lb x 0.01 lb Pan Size: 12 x 12 in More Info			$1,651.65
	Pennsylvania Scale SS7600MAX-1216-50 12 x 16 in Washdown Legal for Trade Bench Scale 50 X 0.01 lb SKU: SS7600MAX-1216-50 Capacity x Readability : 50 lb x 0.01 lb Legal For Trade: 50 lb x 0.01 lb Pan Size: 12 x 16 in More Info			$1,728.65
	Pennsylvania Scale SS7600MAX-1212-100 12 x 12 in Washdown Legal for Trade Bench Scale 100 X 0.02 lb SKU: SS7600MAX-1212-100 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 12 x 12 in More Info			$1,651.65
	Pennsylvania Scale SS7600MAX-1216-100 12 x 16 in Washdown Legal for Trade Bench Scale 100 X 0.02 lb SKU: SS7600MAX-1216-100 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 12 x 16 in More Info			$1,728.65
	Pennsylvania Scale SS7600MAX-1616-100 16 x 16 in Washdown Legal for Trade Bench Scale 100 X 0.02 lb SKU: SS7600MAX-1616-100 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 16 x 16 in More Info			$1,767.15
	Pennsylvania Scale SS7600MAX-1216-150 12 x 16 in Washdown Legal for Trade Bench Scale 150 X 0.05 lb SKU: SS7600MAX-1216-150 Capacity x Readability : 150 lb x 0.05 lb Legal For Trade: 150 lb x 0.05 lb Pan Size: 12 x 16 in More Info			$1,728.65
	Pennsylvania Scale SS7600MAX-1616-250 16 x 16 in Washdown Legal for Trade Bench Scale 250 X 0.05 lb SKU: SS7600MAX-1616-250 Capacity x Readability : 250 lb x 0.05 lb Legal For Trade: 250 lb x 0.05 lb Pan Size: 16 x 16 in More Info			$1,767.15
	Pennsylvania Scale SS7600MAX-1616-500 16 x 16 in Washdown Legal for Trade Bench Scale 500 X 0.1 lb SKU: SS7600MAX-1616-500 Capacity x Readability : 500 lb x 0.1 lb Legal For Trade: 500 lb x 0.1 lb Pan Size: 16 x 16 in More Info			$1,767.15
