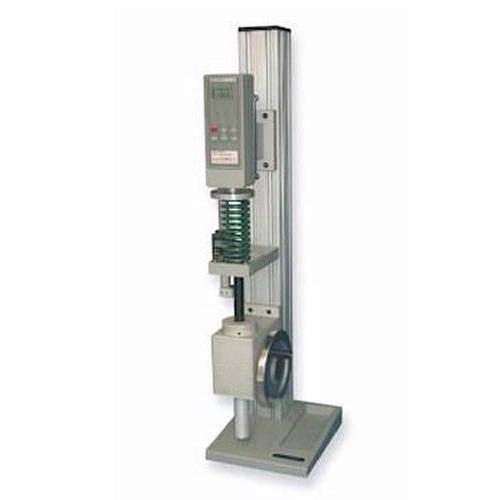

The Mark-10 TSF Force Measurement Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lb (5,000 N) of push or pull force.

The Mark 10 TSF and TSFH test stands feature a large side mounted hand wheel requiring minimal user effort and a rigid 3 x 3 inch column. A removable steel loading surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting. Use the TSF with a Mark-10 Series CG digital force gauge to form a complete high capacity testing system. Available in vertical and horizontal orientations.

Features / Specifications:

• Maximum force: 1,000 lb [5 kN] Maximum travel: 4.00 [102 mm]
• Travel rate: 0.013 [0.34 mm]/wheel rev
• Compatible with all Mark-10 force gauges, accessories and grips
• Loading table with 25 #10-32 UNF holes for fixture mounting
• Smooth hand wheel operation

Optional Equipment

• A wide range of force gauges and gripping fixtures
• Digital travel display - 6 [152 mm] travel, 0.0005 [0.01 mm] resolution, 0.001 [0.03 mm] accuracy, SPC output for automated data collection
• Horizontal / wall mounting kit
• Set of mounting legs that attach to the test stand column in place of the base
• Custom modifications
  Special modifications are available, including custom-designed fixtures, increased column length, and more. Call 1-800-336-5900 for more information.
