Mark-10 G1023 Bottle Grip
Mark-10 - Force and Torque Measurement Products
Torque and top-load testing of closures, bottles more ...
Test Equipment > Grips and Attachments > Torque - Force
Mark-10 G1023 Bottle Grip


Price: $565.25


Available to Ship







Overview

Torque and top-load testing of closures, bottles
Free Ground Shipping within the 48 continental US States

Manufature: Mark 10
SKU: G1023
Weight: 4.00 lb

  Features

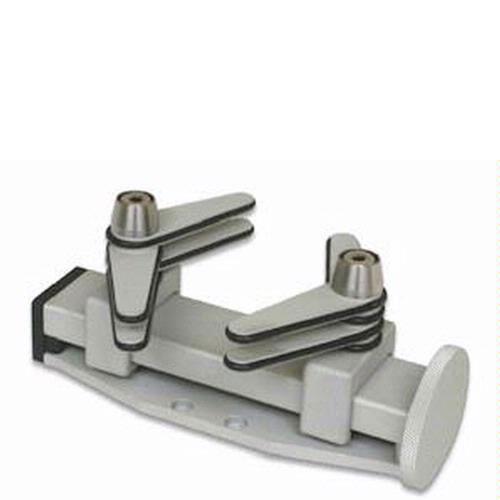

This unique grip is designed for securing bottles, containers, and other items for closure torque testing. Eight rubber edged gripping arms effectively grip a wide range of sample shapes and sizes and can be individually positioned at angles of up to 180°. The G1023 mounts directly to the Mark-10 TST, TSTH, TSTM, and TSTMH Torque Measurement Test Stands. The grip may also be mounted to a force measurement stand to secure closures in such applications as top load testing.

Capacity

lb-in / N-m

Weight

lb / kg

ØA

100 / 11.3

1.5 / 0.7 4.8 / 122.0 max

  Optional Accessories


Mark-10 G1068 G1023 Bottle Grip to G1045 Peel Fixture Adapter
more info
Mark-10 G1068 G1023 Bottle Grip to G1045 Peel Fixture Adapter
more info
Price: $76.00
In Stock
btn buy
G1068 includes mounting hardware for the G1023 fixture and the following test stands: ESM303, ESM1500 (when ordered with optional AC1055 mounting plate), ESM301, ESM, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional AC1060 mounting plate)

×
