Features

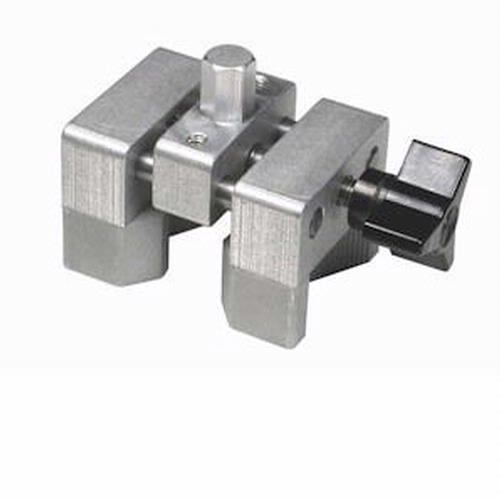

This grip effectively secures bottle caps during torque testing. The G1053 is designed with a hex tail to fit into the chucks of our torque sensors. Reversible serrated jaws accommodate caps with diameters of 0.65 - 1.80 in [16.5 - 45.7 mm] while a knob quickly engages and disengages samples.
This grip can be used either manually with an STJ torque sensor or MGT torque gauge (see application photo at left), or in test stand controlled applications, using our Series TST torque test stands. If used with a test stand, this grip complements our G1023 bottle grip.
| Capacity (lb-in / N-m) |
Weight (lb / kg) |
A |
B |
C |
D1* |
D2* |
|
100 / 11.3 |
0.39 / 0.18 |
3.1 / 78.7 |
2.0 / 50.8 |
1.6 / 40.6 |
1.16-1.8 / 29.5-45.7 |
0.65-1.29 / 16.5-32.8 |
* Jaws must be reversed to switch from ØD1 to ØD2
