| These aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to Mark-10 force gauges and test stands more ... |
| Test Equipment > Grips and Attachments > Compression - Bend - Push | ||||||
|
||||||
OverviewThese aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to Mark-10 force gauges and test stands |
||||||

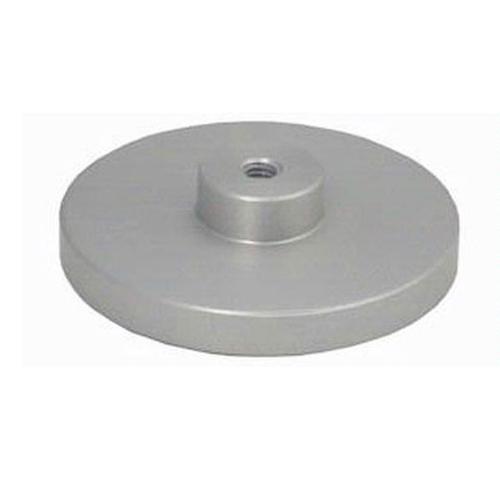

These aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to Mark-10 force gauges and test stands.
| Model | Capacity (lb / N) | Weight (lb / kg) | ØA | Thread | Vented Channels |
|---|---|---|---|---|---|
| G1009 | 200 / 1000 | 0.08 / 0.04 | 2.0 / 51.0 | #10-32F | - |
| G1009-1 | 500 / 2500 | 0.27 / 0.12 | 3.0 / 76.2 | 5/16-18F | - |
| G1009-2 | 200 / 1000 | 0.08 / 0.04 | 2.0 / 51.0 | #10-32F | Yes |
| G1009-3 | 500 / 2500 | 0.27 / 0.12 | 3.0 / 76.2 | 5/16-18F | Yes |
