The seca XLine, with its sleek profile, substantial capacity, and expansive platform, reimagines the weighing experience for bariatric patients in wheelchairs. Healthcare personnel benefit from simplified tasks, enabling quick, secure, and uninterrupted patient care. Safety takes precedence, thanks to guardrails, a skid-proof surface, and an optional ramp for increased accessibility. The Tare-by-Scanning function further streamlines the weighing process by effortlessly taring out the pre-stored weight of the wheelchair through barcode scanning. Choose from two interface options – for EMR integration or non-integrated weighing – ensuring a seamless fit with your specific workflow requirements.

Whats in box:
• Two ramps seca seca 404
• Guard rail seca 446
• Guard rail with castors seca 448
• Display holder seca 476

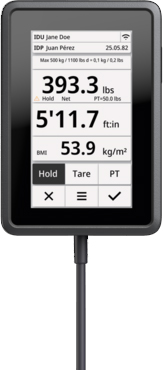

• Basic display seca 495
• Platform scale (110 x 110 cm) seca 604

• XXL dimensions and capacity to accommodate bariatric wheelchairs
• Built to withstand the highest loads with a capacity of 1,100 lbs
• Extra low profile ensures a smooth and safe transition for wheelchair access onto the platform
• Tailor your experience by choosing between the basic display or the ID-Display™ with EMR-interface
• Tare-by-Scanning: simplify the weighing process by taring out the weight of the wheelchair by scanning its barcode
• EMR-validated, enabling seamless data transmission directly to an Electronic Medical Record (EMR) system or to a printer

Platform Selection- Metric Sizes 60" x 48" 60" x 50.8
Model	ONSWXINBNN	ONSWXINTNN	ONSWXIRTNN	ONSWXIRBNN
Capacity x Readability	1,100 lb x 0.2 lb	1,100 lb x 0.2 lb	1,100 lb x 0.2 lb	1,100 lb x 0.2 lb
	500 kg x 100 g	500 kg x 100 g	500 kg x 100 g	500 kg x 100 g
Units	kg/lbs
Functions	TARE, Pre-TARE, HOLD, Auto-HOLD, Clear, Auto-clear, RESET, kg/lbs switch-over, Damping, BMI, Patient data input, Transport custors, Backlighting, Acoustic signals can be activated
TARE-Range	500 kg/1,100 lbs
Possible weighings	15000
Power supply	Batteries/Power adapter	Power adapter		Batteries/Power adapter
Turn-off time with power supply	No switch off
Turn-on time with activated HOLD	No switch off
Cable length	118 in/3 m
Interfaces	none	Ethernet, USB for barcode scanner, Wi-Fi		none
Digit size	0.7 inch/18 mm	0.4 inch/9 mm		0.7 inch/18 mm
Net weight	122.1 lbs/55.4 kg		136.7 lbs/62.0 kg
Product width	60 in/1,523 mm
Product height	4.6 in/117mm		44.4 in/1,127 mm
Product depth	48.0 in/1,220 mm		50.8 in/1,290 mm
Platform width	43.3 in/1,100 mm
Platform height	2.2 in/55 mm
Platform depth	43.3 in/1,100 mm
Ramp	2 ramps included
